MICASENSE SERIES

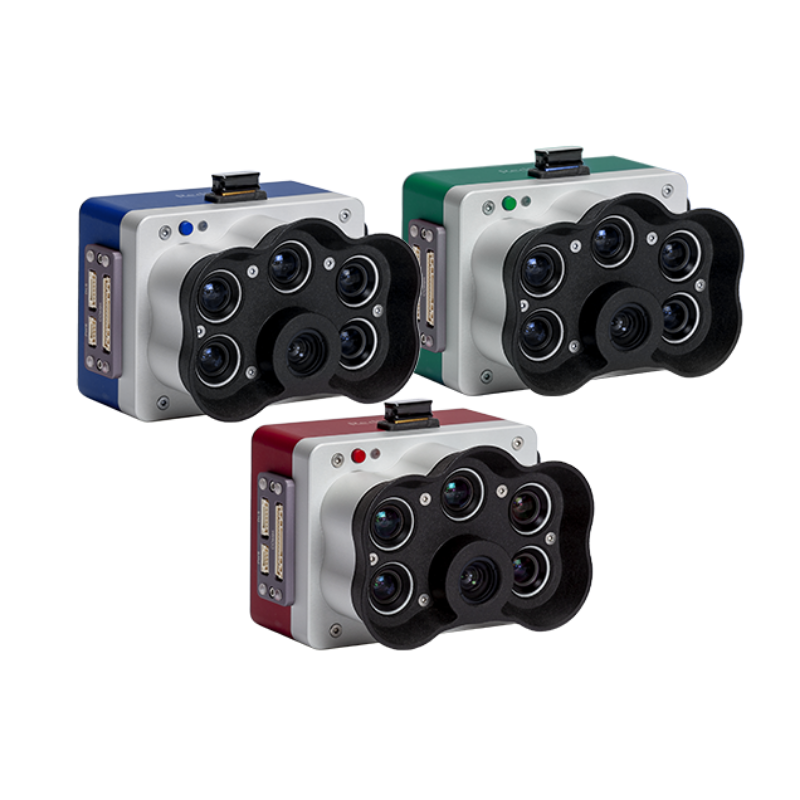

RedEdge-P
High-resolution multispectral and RGB sensors.
RedEdge-P features a high-resolution panchromatic band for pan-sharpened output resolutions of 2 cm / 0.8 in at 60 m / 200 ft.
Its five narrow multispectral bands with scientific-grade filters make it the perfect UAS camera for calculating multiple vegetation indices and composites.
Three different versions are available: RedEdge-P, RedEdge-P blue and RedEdge-P green. NDAA compliant.
Buy Now
Block: features
FEATURES
Industry standard for data quality and repeatability.
Block: logo_grid
Compatable Drones
Block: content_tabs
WHY REDEDGE-P
Increase data accuracy and repeatability

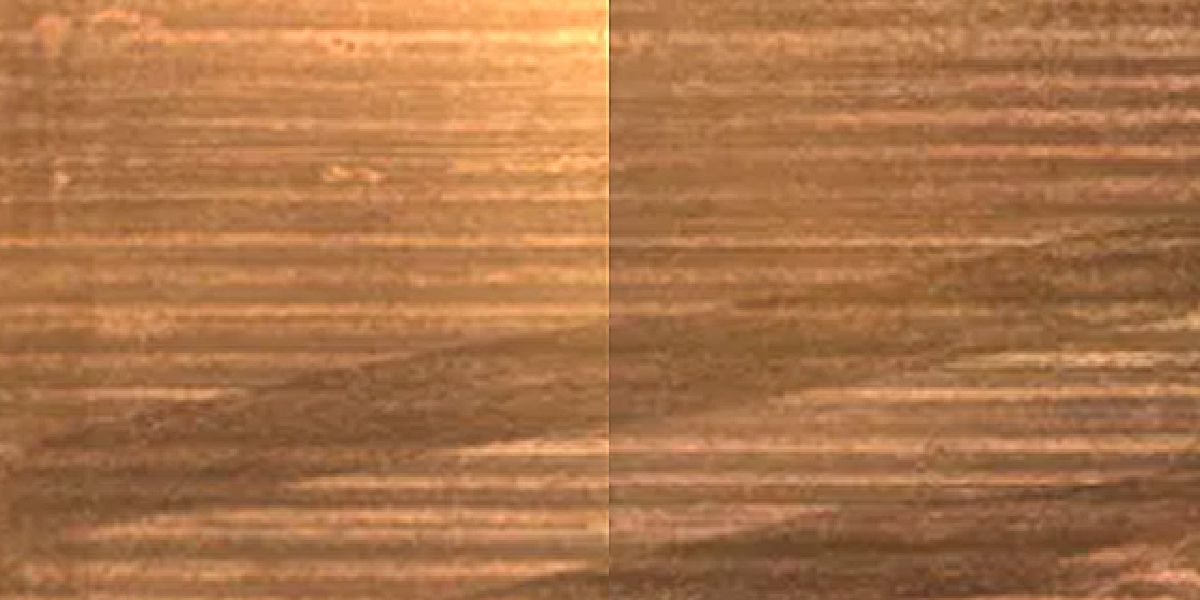

Calibrated multispectral imagery
Each RedEdge-P camera kit comes with a Reflectance Panel for on-the-ground calibration as well as a DLS2 light sensor for irradiance and sun angle measurements. These radiometric calibration tools account for different weather and light conditions, providing more accurate, reliable data that enable time series analysis and comparability of outputs over time.

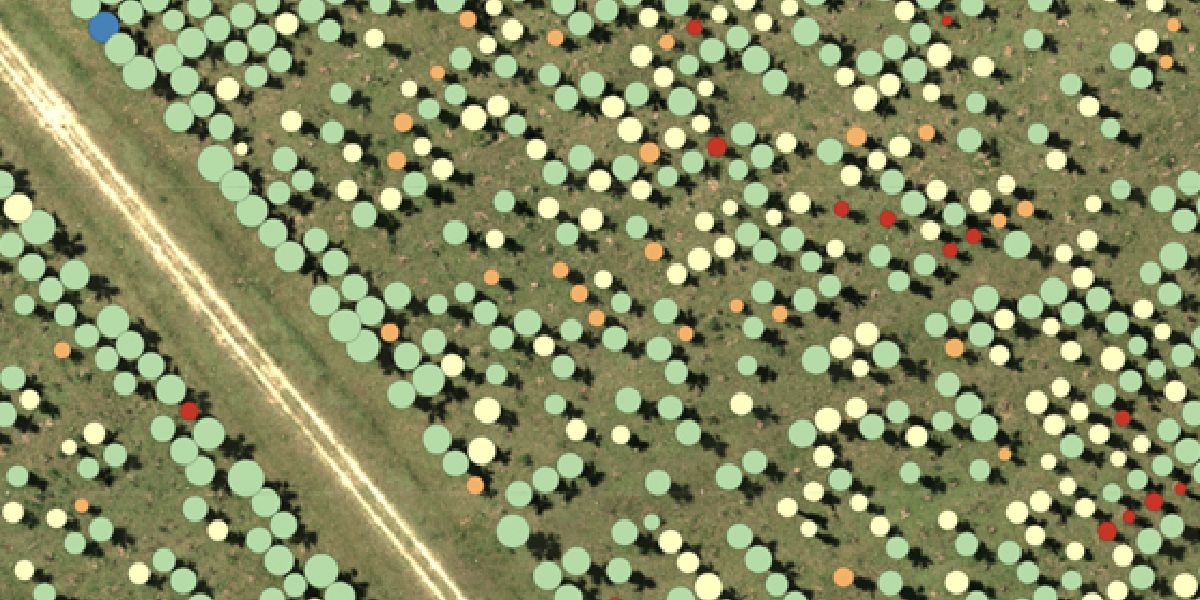

Powerful AI capabilities
Thanks to the panchromatic band, RedEdge-P enables high-resolution RGB and multispectral imagery for machine learning applications such as plant counting and advanced vegetation research applications.
Compatible with a wide range of drones and processing software
The RedEdge-P SkyPort ensures perfect compatibility with DJI’s M300 RTK drones. The camera also features an open API interface for easy integration with many popular drone and software platforms.

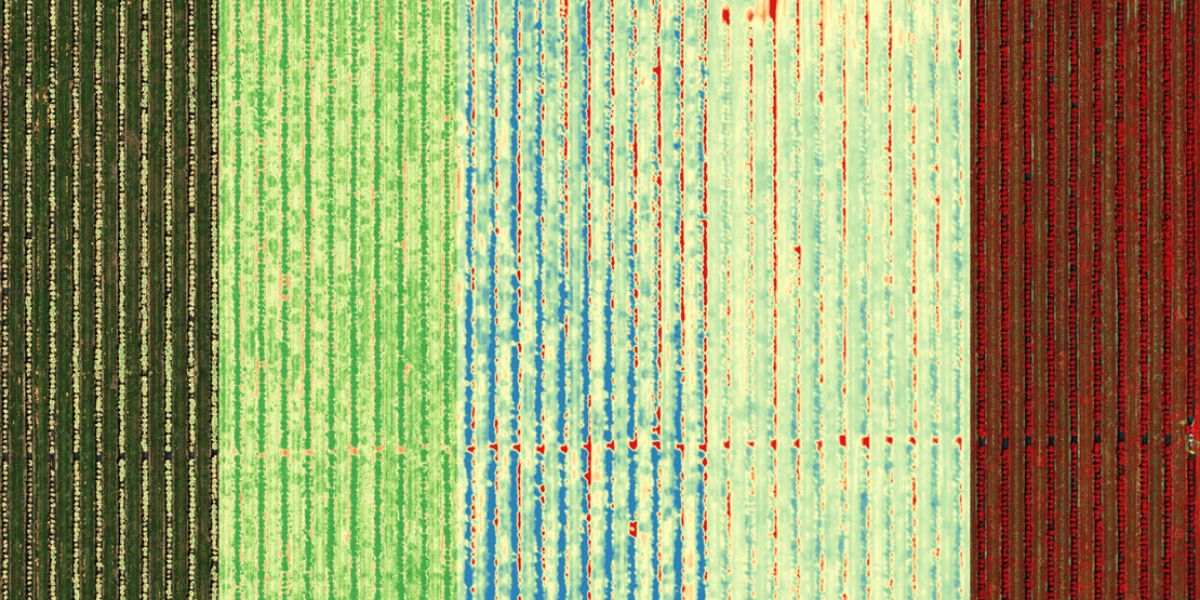

Synchronized capture of high-res RGB and multispectral
Simultaneous capture of up to six bands, enabling multiple high-resolution outputs such as RGB, crop vigor indices and composites (NDVI, NDRE, CIR), and high-resolution panchromatic.

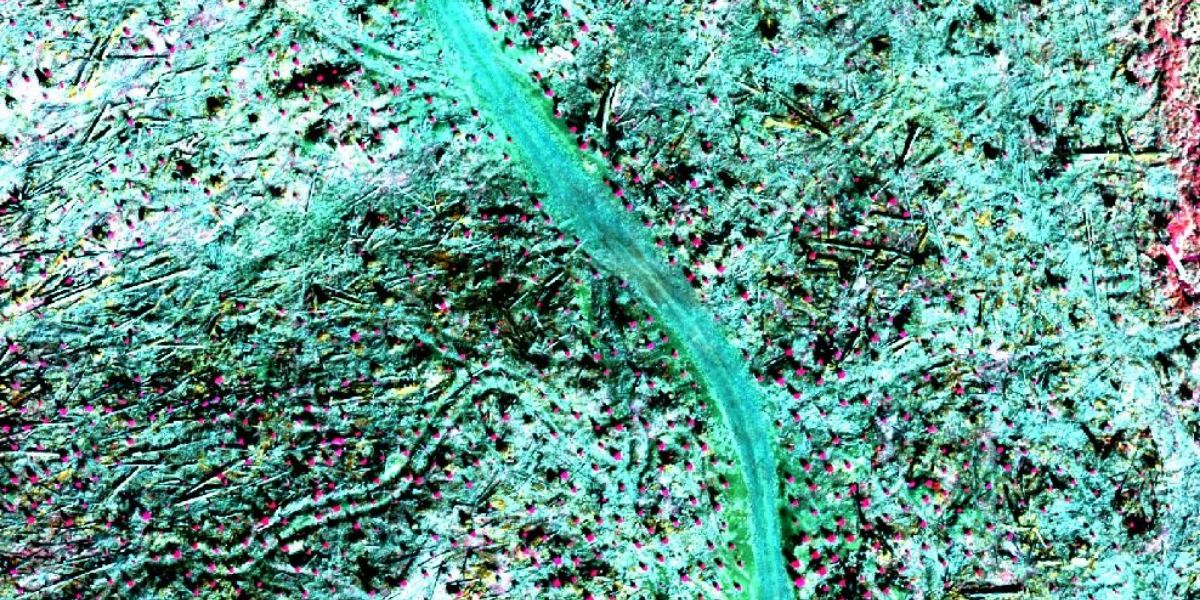

Fast capture rate
RedEdge-P leverages CFexpress, a 2 TB removable storage that enables up to three captures per second*, immediate turnaround time between flights by swapping cards, and fast card-to-computer upload speeds for more efficient data management.
(*depending on user configurations)
Global shutter
The global shutter of RedEdge-P allows for distortion-free image captures.

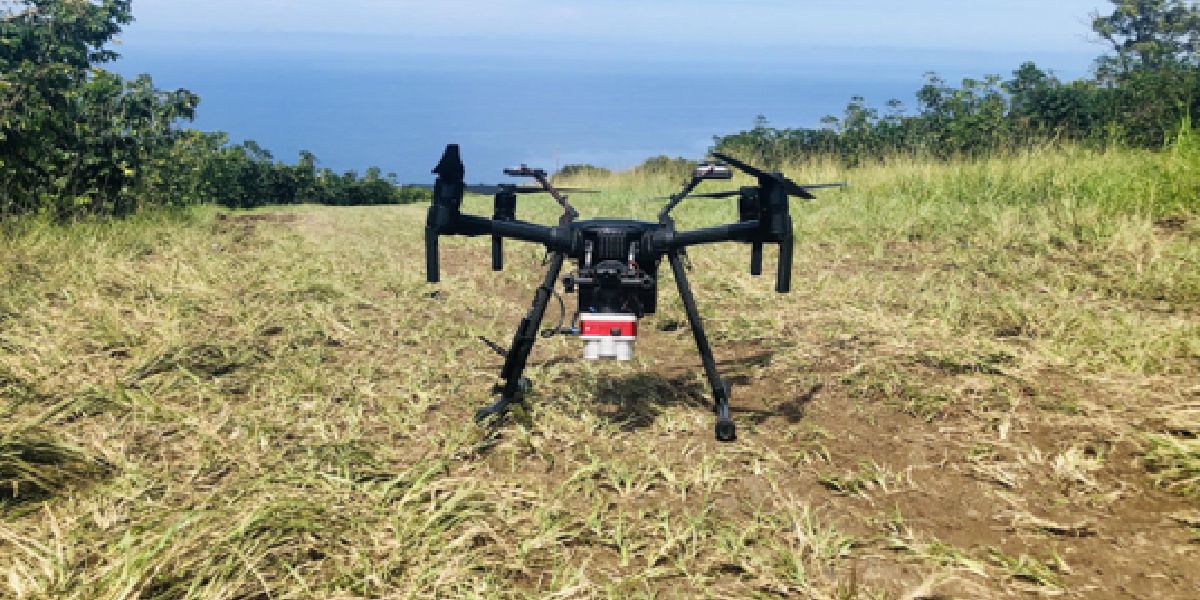

User-driven design
Our products are designed upon customer feedback. The RedEdge-P features twice the spatial resolution of previous RedEdge models, a faster capture rate and RTK support for DJI M300 drones.
NDAA compliant
All MicaSense series sensors are NDAA compliant, designed, manufactured, and engineered in the USA.
Block: content_tabs
USE CASES AND APPLICATIONS
Designed specifically for UAV and vegetation mapping

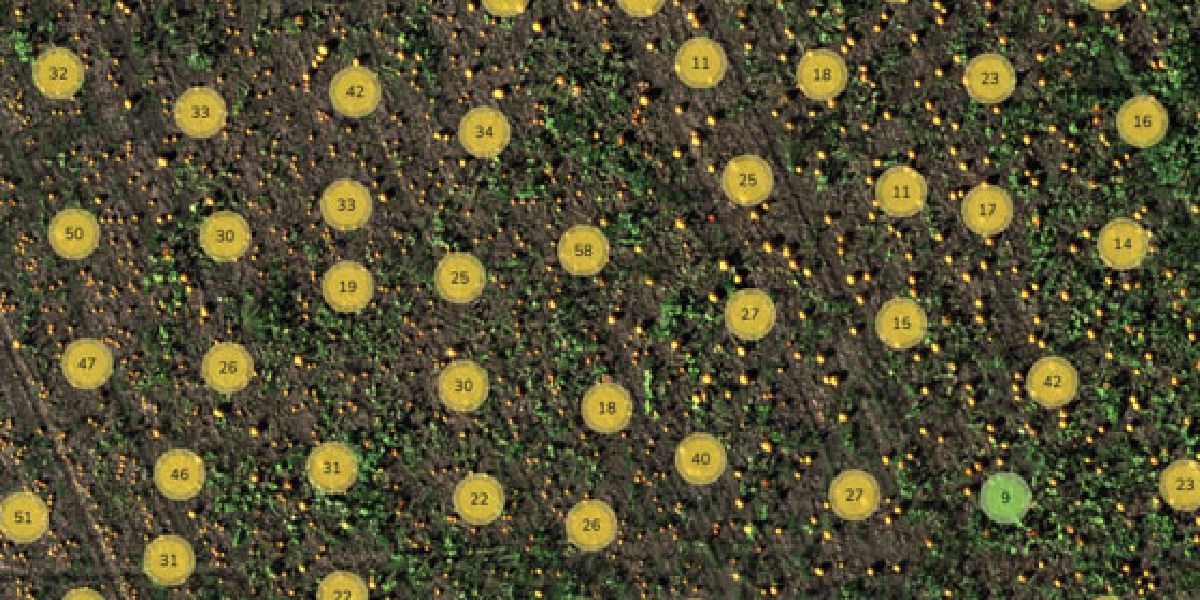

Plant counting
Plant counting algorithms require high-resolution imagery. RedEdge-P combines a panchromatic lens with 5-high-res multispectral lenses enabling high-res RGB and multispectral outputs, allowing plant count even at early growth stages.
Phenotyping
Manually measuring plant characteristics is time-consuming. RedEdge-P band combination enables high-resolution multispectral outputs, allowing the detection of variability at the leaf level.

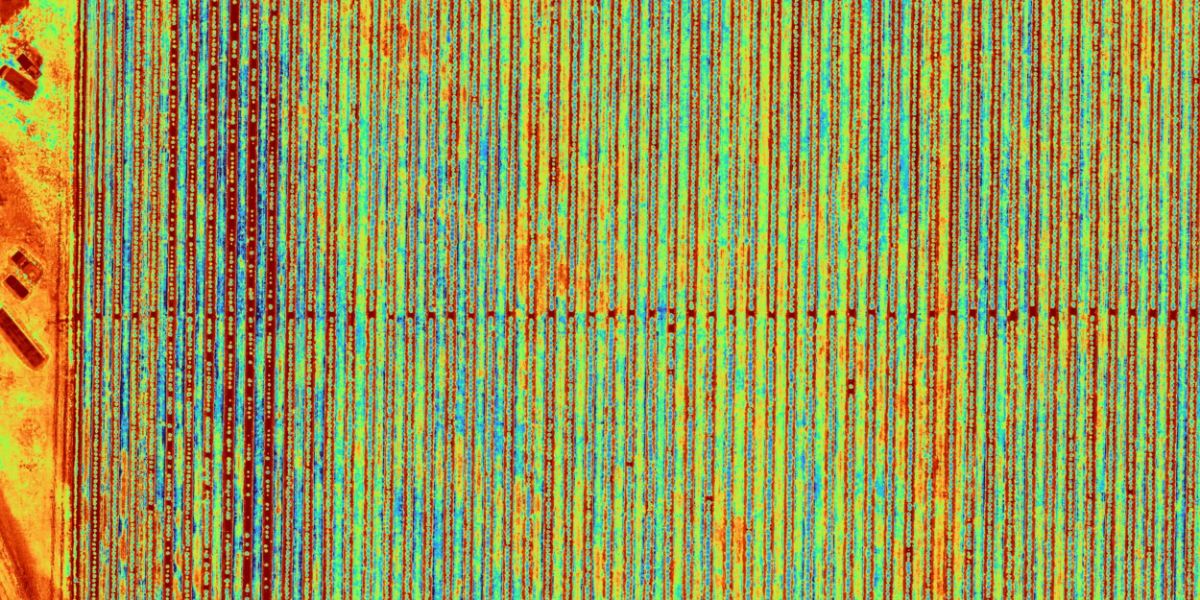

Plant health mapping
RedEdge-P’s high-resolution multispectral outputs allow the generation of indices and composites to see individual chlorophyll levels in the plants and compare over time.

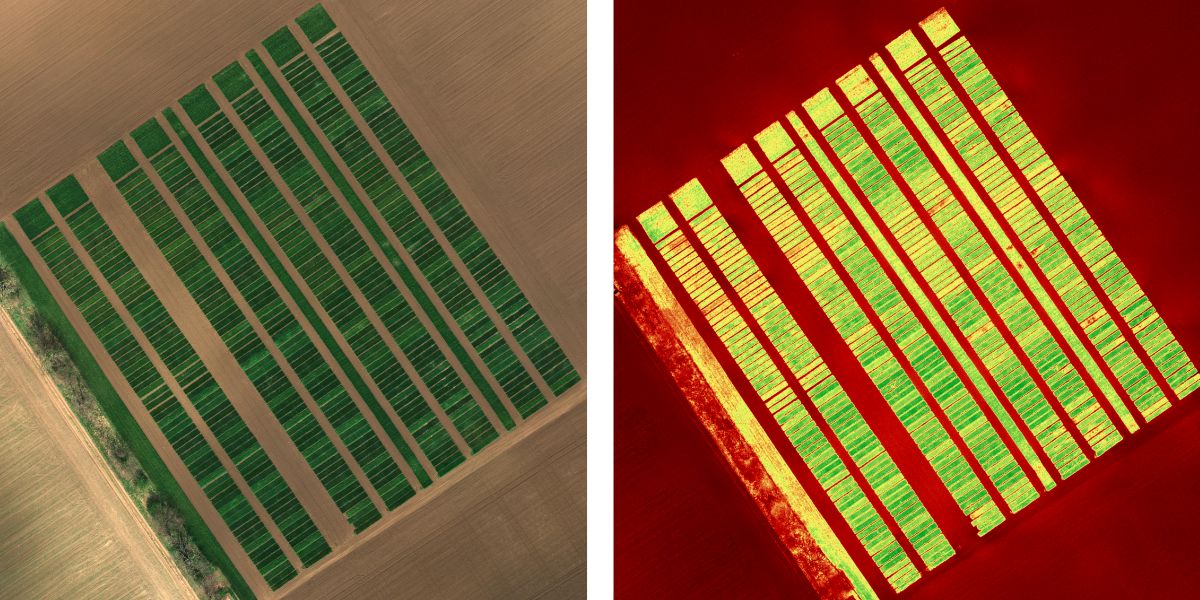

Fertilizer management
RedEdge-P’s high-res and accurate outputs allow easy identification of areas low in nutrients and help monitor the effects of fertilizer applications throughout the season and determine if, when, and where a new application is needed.

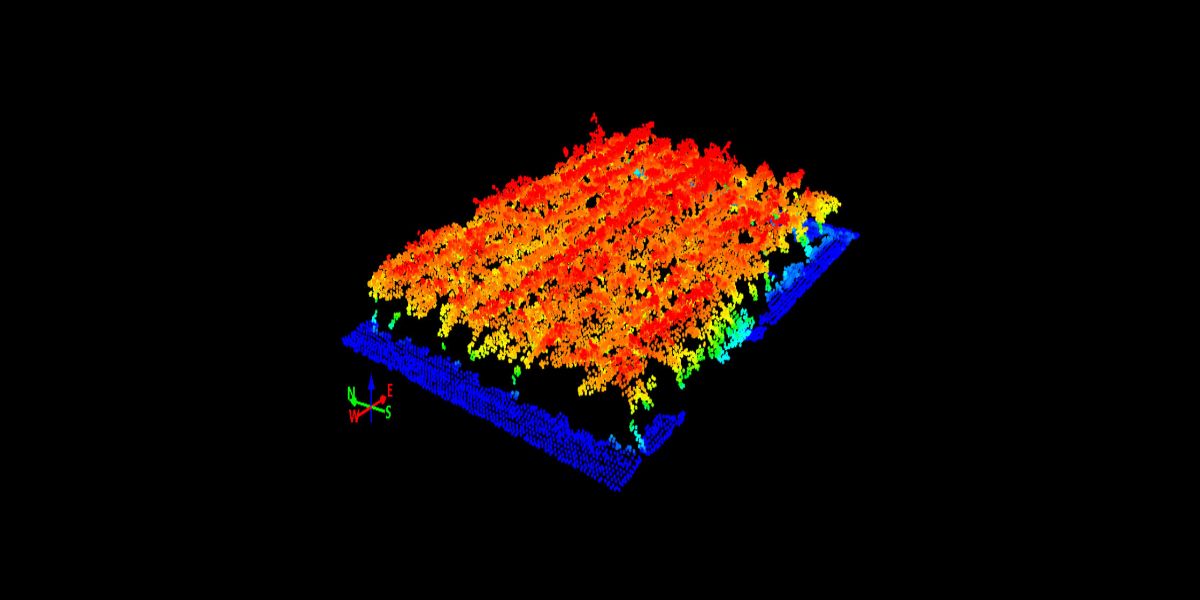

Disease identification
RedEdge-P captures a critical part of the light spectrum for studying plants (712–722 nm), called the red edge band. It is in this section of the spectrum that the first signs of stress start to show. Using analytics generated with the red edge band, it is possible to identify disease sooner and act faster to stop the spread.

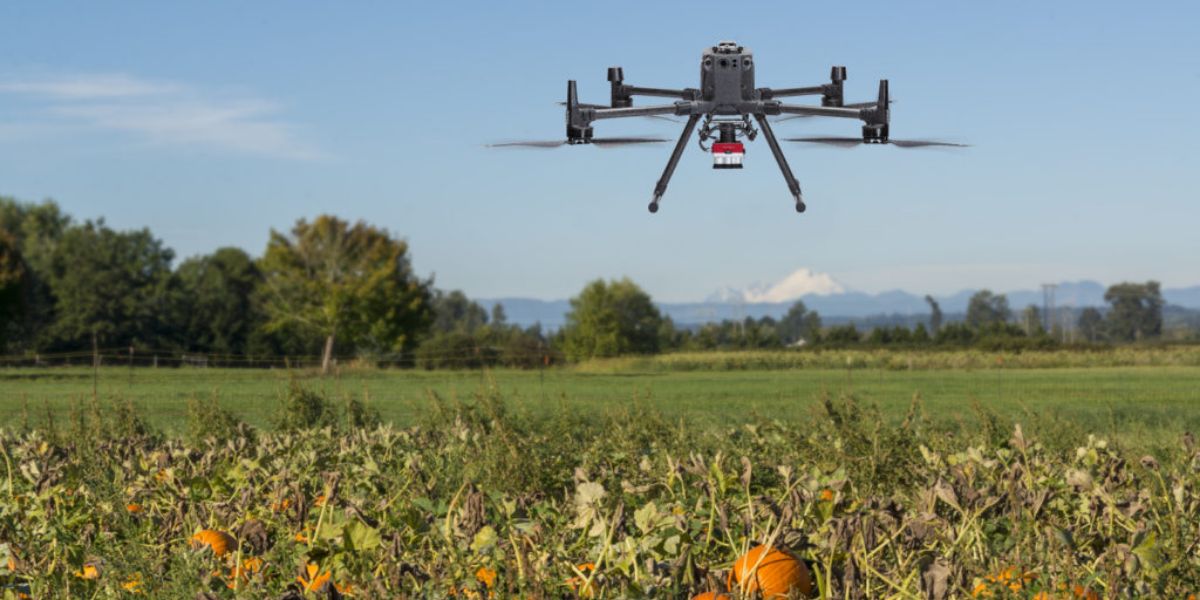

Species differentiation
Some differences among species may not be visible to the naked eye. High-res multispectral data allows for species differentiation, weeds included, by highlighting characteristics such as chlorophyll content, vigor, and leaf size.
Advanced crop scouting
High-res multispectral and RGB imagery provides advanced field scouting capabilities. In one flight, it is possible to collect accurate and geotagged information of a problem, making it easy to assess the situation and determine the appropriate intervention.

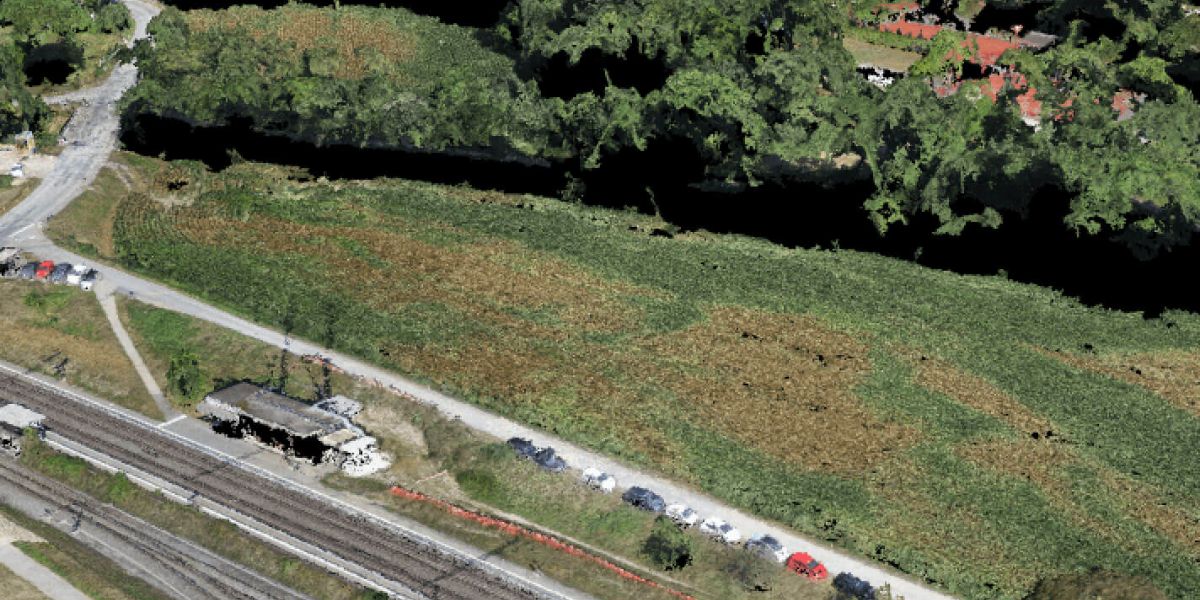

High-res 3D point clouds
RedEdge-P’s 5.1 megapixel panchromatic band provides over twice the ground resolution of the industry-standard RedEdge-MX, resulting in 3D point clouds with up to 4 times the point density.
Block: flexible_cards
Get the right sensor
RedEdge-P Multispectral Kit
- RedEdge-P camera
- DLS 2 light sensor with embedded GPS
- CRP2 Calibrated Reflectance Panel
- USB Wi-Fi dongle
- Lens cover
- Integration cables
- Assorted mounting hardware
- CFexpress card
- CFexpress card reader
- Hard carrying case
- Start guide
RedEdge-P Green Dual Kit
Transform your RedEdge-P into a RedEdge-P Dual by adding the RedEdge-P green camera.
- RedEdge-P green camera
- USB Wi-Fi dongle
- Lens cover
- Integration cables
- Mounting hardware
- CFexpress card
- Hard carrying case
- Start guide
RedEdge-P Blue Dual Kit
Transform your RedEdge-P into a RedEdge-P Dual by adding the RedEdge-P blue camera.
- RedEdge-P blue camera
- USB Wi-Fi dongle
- Lens cover
- Integration cables
- Mounting hardware
- CFexpress card
- Hard carrying case
- Start guide
RedEdge-P Triple Kit
Transform your RedEdge-P into a RedEdge-P Triple by adding the RedEdge-P blue and RedEdge-P green cameras.
- RedEdge-P, RedEdge-P blue and RedEdge-P green cameras
- DLS 2 light sensor with embedded GPS
- CRP2 Calibrated Reflectance Panel
- USB Wi-Fi dongle
- Lens cover
- Integration cables
- Assorted mounting hardware for dual and triple uses
- CFexpress card
- CFexpress card reader
- Hard carrying case
- Start guide
Block: relevant_resources

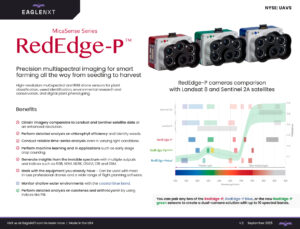

Block: product_brochure
