REAL-TIME SITUATIONAL AWARENESS UAS

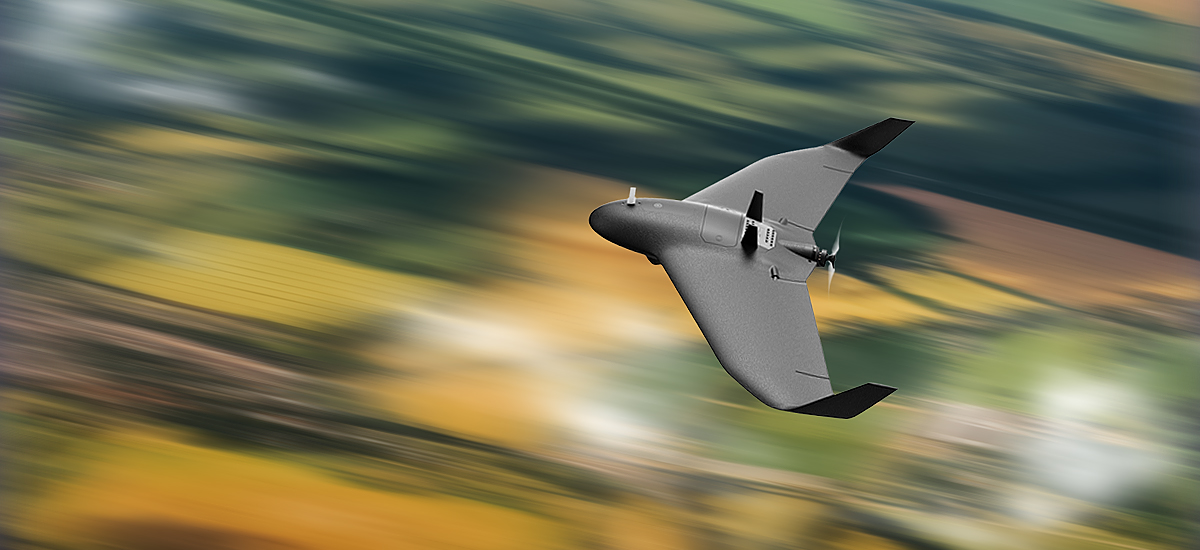

eBee VISION

Backpack-portable, hand-launched fixed-wing UAS that delivers live HD video and thermal imagery for public safety, defense, and professional Intelligence, Surveillance & Reconnaissance (ISR) missions, day or night, even in GNSS-denied environments.

Real-time video with powerful zoom and thermal options from up to 12 mi / 20 km, with detect, track, and geo-locate capabilities.

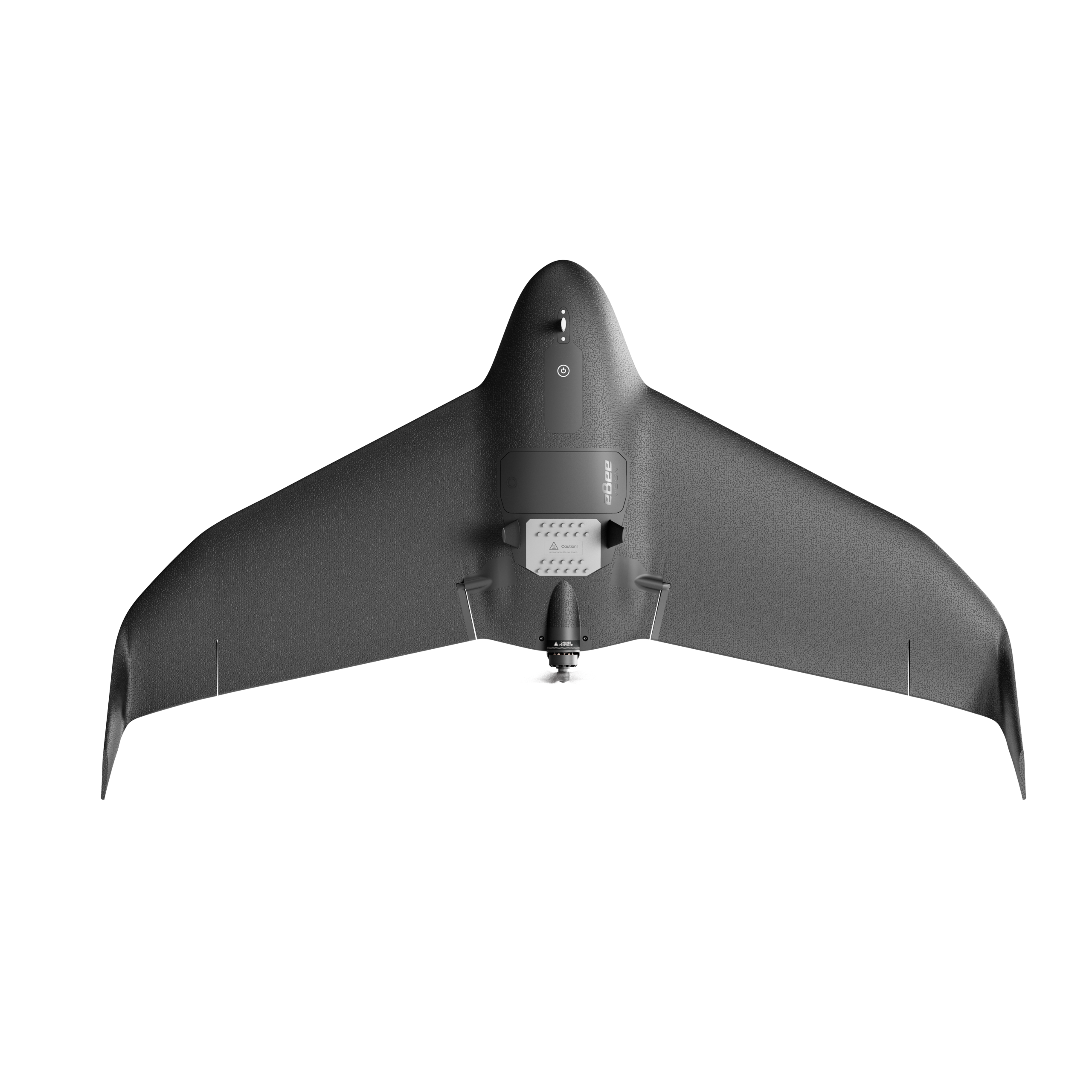

eBee Vision 1

Block: embed

Block: features

Features

Detect, track and geo-locate objects.

Block: content_tabs

WHY THE VISION?

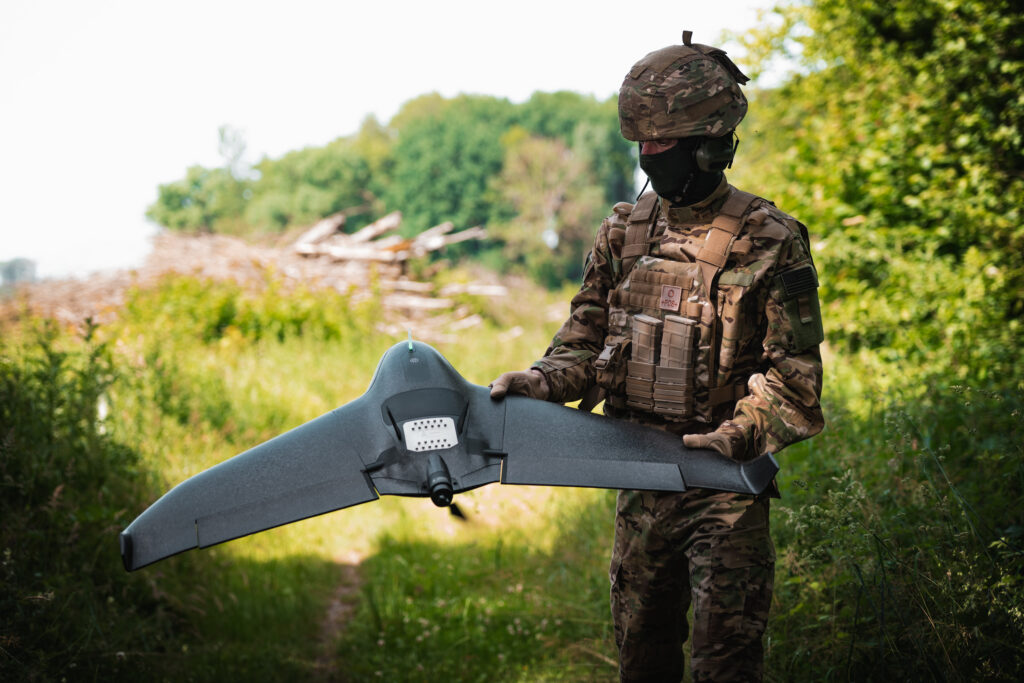

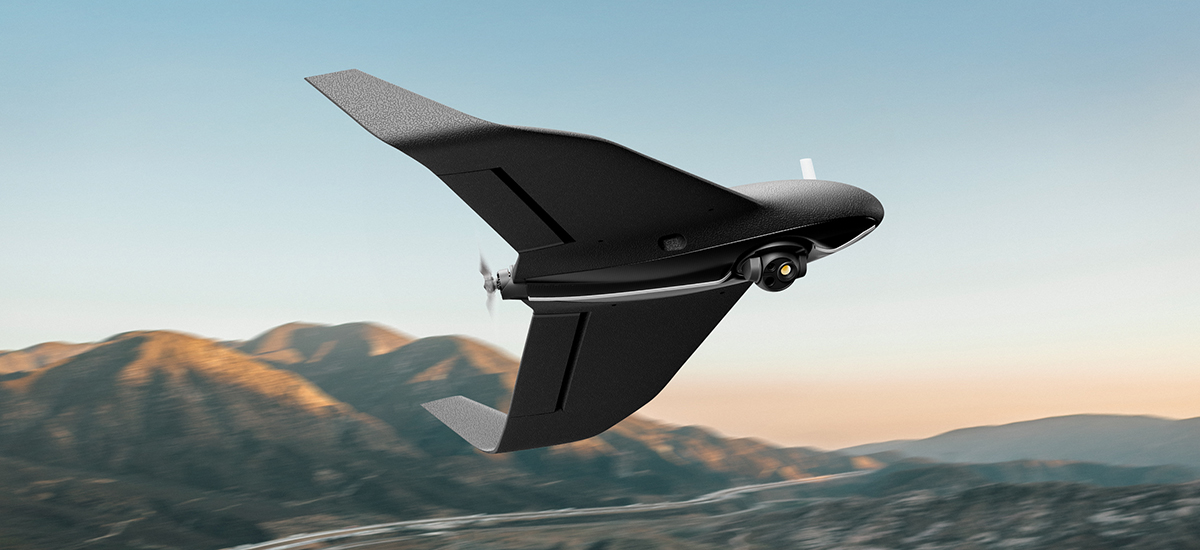

Capable of up to 90-minute flight endurance, the fixed-wing VISION can fly higher, farther, and faster than quadcopters, making them perfect  for jobs requiring a greater area of coverage, superior wind resistance, and more efficient performance.

GNSS-denied operation, low acoustic signature, cyber-secure data links (AES-256), and reliable performance across temperature and weather extremes.

Pick your mode

  • Observation Mode: Maintain observation from a safe distance
  • Scouting Mode: Explore and track moving targets
  • Mapping Mode: Create circular or grid mapping patterns
  • Cursor on target: Locate targets using image coordinates


Engineered with Swiss precision, with options for VISION units produced in either the United States (Allen, Texas) or European-made units at our Switzerland facility, capable of supporting local industrial requirements.

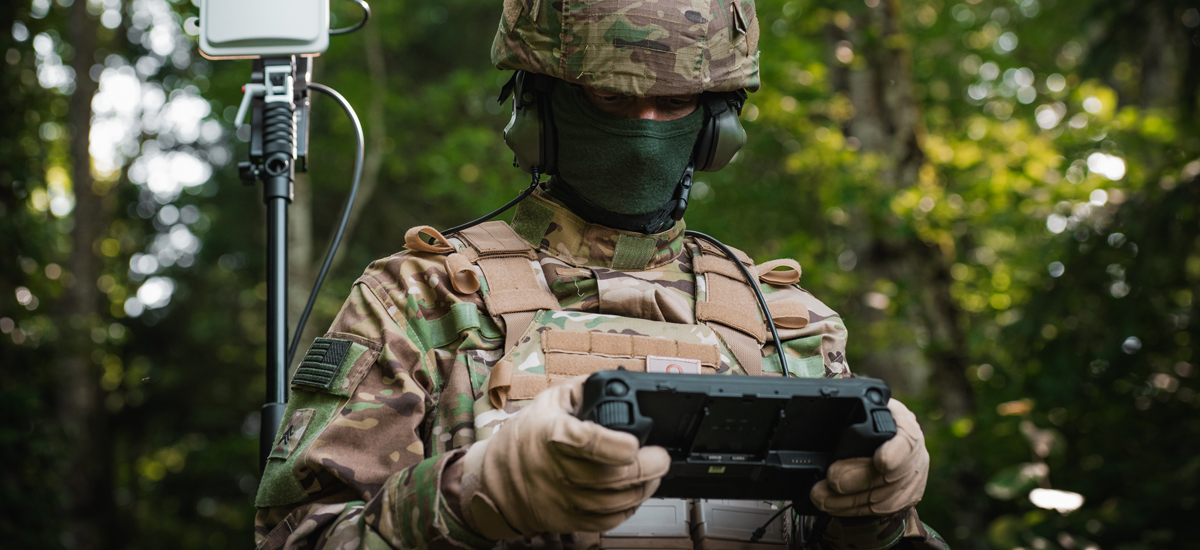

Define a flight plan and seamlessly adapt it during the flight, or control the drone for yourself and your desired flight maneuvers.


Blue UAS Cleared, NDAA Compliant: the eBee VISION is preapproved by the U.S. State Department for acquisition, as it lives up to the U.S. Government’s strong supply-chain security requirements. This eliminates procurement barriers, accelerates deployment, and ensures your tactical ISR operations meet the highest U.S. government security standards. The eBee VISION complies with the U.S. National Defense Authorization Act, so you can focus on the mission instead of the paperwork

Manufactured in the United States and Switzerland

Block: accordion

SPECIFICATIONS

Wingspan
47 in / 120cm
Weight (incl. camera & battery)
3.6 lbs / 165 kg
Electric motor
Low-noise, brushless
Case
Backpack and hardcase
Detachable wings
Yes
Cameras
Built-in camera included
Frame material
Carbon fiber and reinforced injected polymer

RGB Sensor
2 sensors ½.4” (5.9mm x 4.4mm)
RGB Resolution
5344 x 4016
RGB Focal length
4mm / 16mm
RGB ISO Range
100-3200
RGB Zoom
16x optical, 2x digital
RGB Video resolution
1920 x 1080 record / 1280 x 720 stream
RGB Video format
MPEG-TS (H.264) + embedded STANAG 4609
Thermal Sensor
FLIR BOSON
Thermal Resolution
640 x 512
Thermal Focal length
18mm
Thermal Field of view (H x V)
24o x 19o
Thermal Zoom
5x digital
Thermal Video resolution
1280 x 720 record and stream

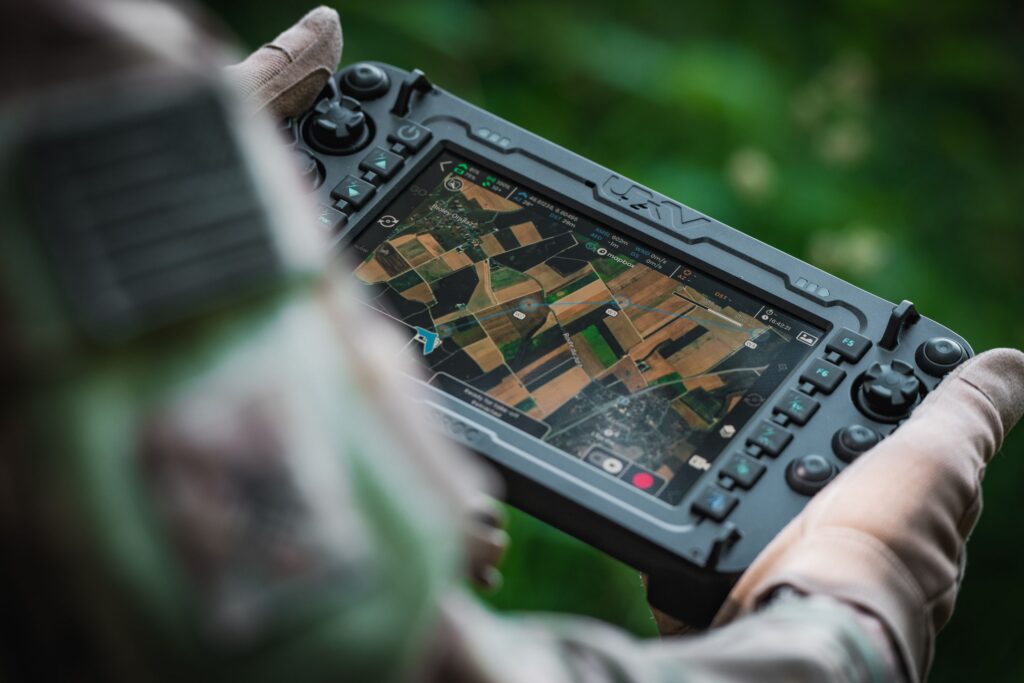

Screen
7” sunlight viewable screen with rain mode and glove touch
Video
Continuous HD video feed from RGB and thermal sensors
Battery
1h30m hours battery life with warm-swap capability

Cruise speed
28 mph to 50 mph (45 km/h to 80 km/h)
Max speed
50 mph (80 km/h)
Max wind resistance
38 mpg (61 km/h)
Max flight time
90 minutes
Service temperature
14 o F, 120 o F / -10 o C, +49 o C
Landing
Autonomous / Silent Tactical Landing (STL)
Rain Resistance
Light rain resistance
Max flight altitude ceiling
16,400 ft / 5000 m
Max takeoff altitude
Tested up to 9800 ft, 3000m

GCS
Radio module with short range antenna
Radio module auxiliary battery
Radio module auxiliary battery charger
Two smart batteries
Smart charger
Backpack Ebee X
Drone backpack
Drone backpack
Sensefly Hard Case 1
Hard case
Hard case
SD Card 64 GB
Spare Propellers Ebee X
Spare propellers and pilot kit
Spare propellers and pilot kit

Block: flexible_cards

Support

Product Support

Product Support

We are recognized throughout the industry for excellence in customer service. Our drone solutions include lifetime hardware, payload and eMotion support, plus free software and firmware updates. Should you require support for your mission or when coming back from the field, our global support network and R&D team stand by to help.

Training Programs

Training Support

Available online and in-person, our eBee VISION training addresses defense and Parapublic needs. With a military background, our training team has performed real missions worldwide. In addition, we offer customized training focused on different field missions at our headquarters in the U.S. and Europe.

Block: product_brochure

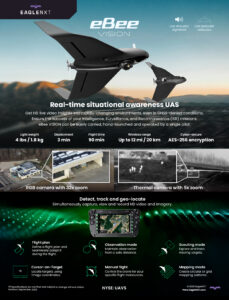

Download eBee VISION brochure

eBee Vision Brochure
Download
