MICASENSE SERIES

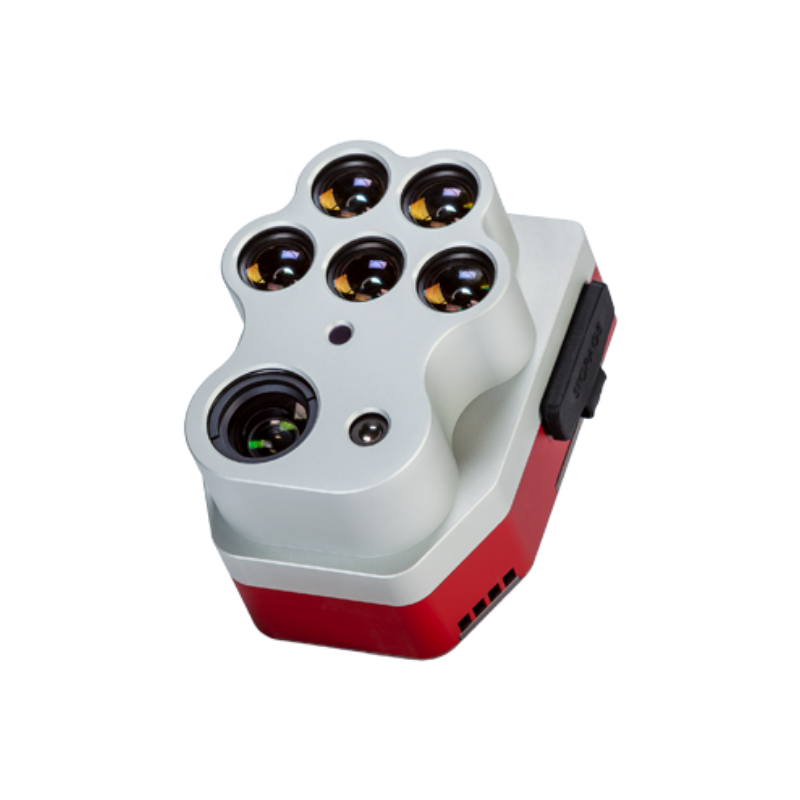

Altum-PT
Optimized 3-in-1 solution for advanced remote sensing and agricultural research.
Seamlessly integrates a 12 MP high-resolution panchromatic sensor, a thermal sensor, and five discrete spectral bands. Its high-resolution makes it the perfect sensor for machine learning plant-level applications such as early-stage crop counting. It also features a global shutter for distortion-free results, open APIs, and a new storage device allowing up to 2 captures/second. NDAA compliant.
Buy Now
Block: features
Features
Accurate results at leaf-level resolutions.
Block: logo_grid
Compatable Drones
Block: content_tabs
WHY THE ALTUM PT?
Increase data accuracy and repeatability
Calibrated multispectral imagery
Each Altum-PT camera kit comes with a Reflectance Panel for on-the-ground calibration as well as a DLS2 light sensor for irradiance and sun angle measurements. These radiometric calibration tools account for different weather and light conditions, providing more accurate, reliable data that enable time series analysis and comparability of outputs over time.
Powerful AI capabilities
Thanks to the panchromatic band, Altum-PT enables high-resolution RGB, multispectral, and thermal imagery for machine learning applications such as plant counting and advanced vegetation research applications.
Open interface for easy integration
The Altum-PT SkyPort ensures perfect compatibility with DJI’s M300 RTK drones. The camera also features an open API interface for easy integration with many popular drone and software platforms.
Synchronized thermal and multispectral capture
The simultaneous capture of multispectral, thermal, and panchromatic bands eliminates the need for data alignment in post-processing and enables high-resolution outputs such as RGB color, NDVI, NDRE, CIR.
Capture rate of up to 2 images/second
Altum-PT leverages CFexpress, a 2 TB removable storage that enables up to two captures per second*, immediate turnaround time between flights by swapping cards, and fast card-to-computer upload speeds for more efficient data management.
(*depending on user configurations)
Global shutter
The global shutter of Altum-PT allows for distortion-free image captures.
User-driven design
Our products are designed upon customer feedback. The Altum-PT features twice the spatial resolution of previous Altum models, a faster capture rate and RTK support for DJI M300 drones.
NDAA compliant
All MicaSense series sensors are NDAA compliant, designed, manufactured, and engineered in the USA.
Block: content_tabs
USE CASES AND APPLICATIONS
Designed specifically for UAV and vegetation mapping
Pressure issues and clogs detection in irrigation systems
Altum-PT’s thermal imagery can help identify clogs and irrigation leaks through the water cooling effects or lack thereof on the vegetation and ground. Areas with excessive irrigation will appear noticeably cooler than the rest of the field. Areas with no irrigation will show higher temperatures than the rest of the field.
Irrigation scheduling
Determining irrigation time, frequency, and duration is a critical factor in production agriculture since it directly impacts the health of crops. Altum-PT thermal imagery provides powerful insights into water management, helping irrigation managers determine the correct watering and identify leaks or clogs in the irrigation system by the difference in crop canopy and soil temperature.
Disease, pest and nutrient deficiency detection
With the high-resolution multispectral imagery from Altum-PT, users have a better chance to identify problems affecting the physiology of the plant canopy. Diseases, insects, and nutrient issues often cause physiological damage before symptoms are visible in RGB. Using the different multispectral indices and composites of the pan-sharpened data, these issues can be detected sooner.
Plant phenotyping
Manually measuring plant characteristics is time-consuming. Altum-PT captures more data in less time, allowing researchers to more easily understand how different traits react to different growing conditions.
Fruit yield estimations
Popular fruit yield estimation methods like manual fruit count or time series analysis are time-consuming and expensive. Altum-PT offers a combination of high-resolution RGB, multispectral, and thermal imagery, enabling more precise yield predictions by allowing algorithm-based fruit counts and temperature analysis.
Water stress prediction
Canopy temperature is a valuable indicator of plant stress. Altum-PT thermal imager allows farmers to periodically evaluate plant physiological status and detect subtle changes in canopy temperature that could be an indicator of water stress.
Block: accordion
Specifications

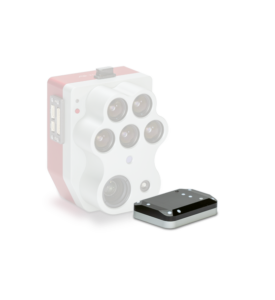

The Downwelling Light Sensor (DLS2) is an advanced incident light sensor. It measures the ambient light and sun angle for each of the five multispectral bands of the camera. This information can then be used by specialized processing tools to correct global lighting changes in the middle of a flight, such as those that can happen due to clouds covering the sun.

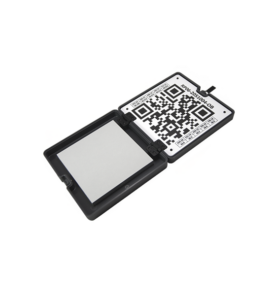

The Calibrated Reflectance Panel (CRP2) is a compact on the ground radiometric calibration tool. The panel has pre-measured reflectance values across the visible and near-infrared light spectrum and therefore acts as a “control”. Taking a picture of the calibration panel allows you to assign the known reflectance values and adjust your dataset accordingly during post-processing. As a best practice, CRP images should be captured before and after each flight to provide an accurate representation of light conditions during the flight.
Block: accordion
WHAT’S INCLUDED

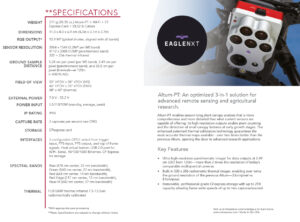

Block: product_brochure
